Real Projects
Reliable Results

Showing 4 of 4 projects

•

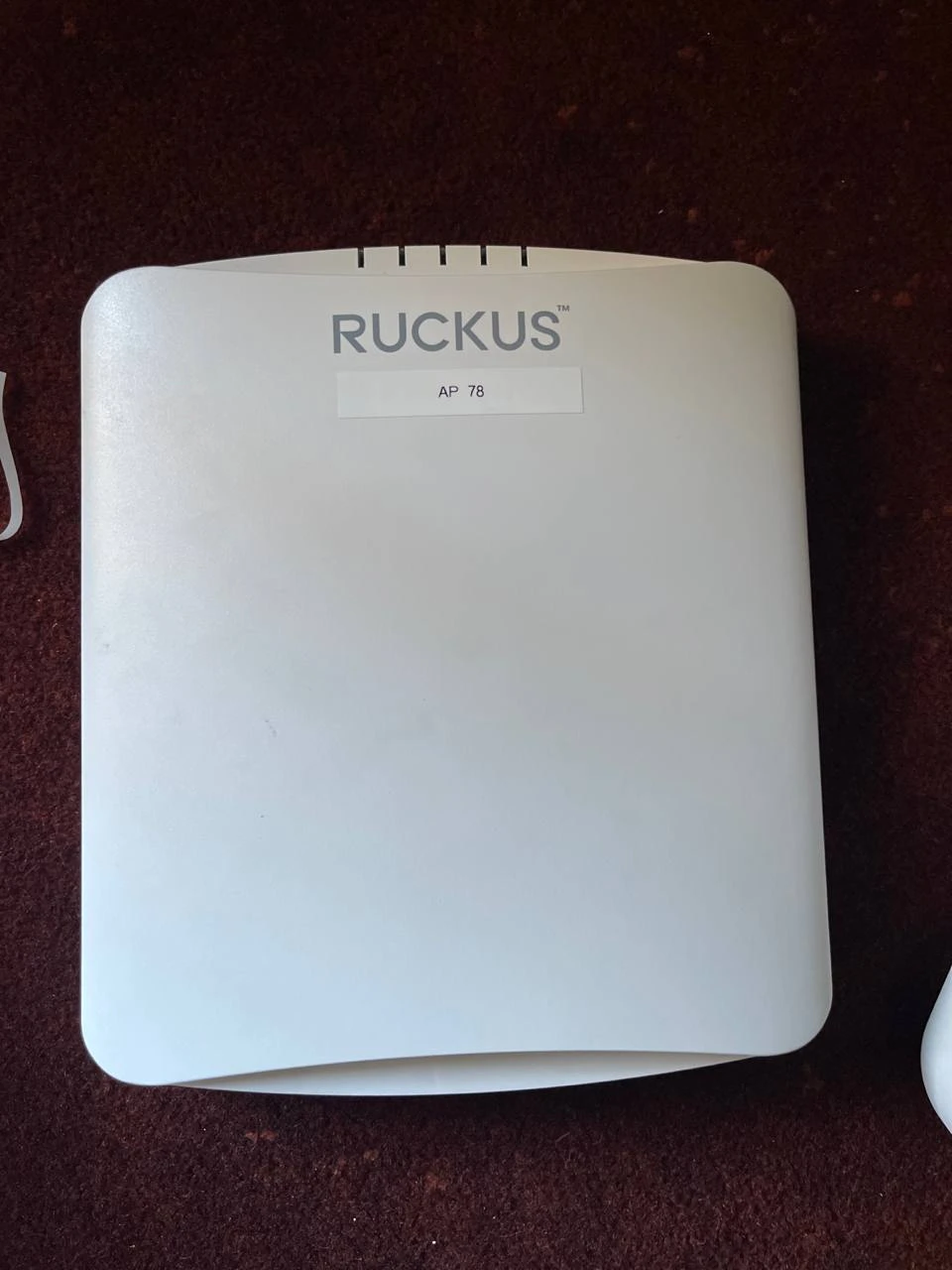

  Tommy Bahama Miramonte Resort & Spa Structured Cabling and AP Install

  Tommy Bahama Miramonte Resort & Spa is a 5 star resort located in Indian Wells, CA. For this project we installed 27 new Access Points and about 1,500ft of CAT6 Plenum cable for the APs. We also ran 350 feet of OM4 plenum-rated fiber line. To complete this project, we had to run 24 new CAT6 plenum-rated cables inside three buildings and two outdoor buildings. The second floor required the dismounting of light fixtures to run eight cables for the APs since there were no access panels and no crawl space (See Pictures). We utilized a lift for the ballroom since the ceiling was 30 feet high. In the ballroom, we ran nine cables and installed nine access points. Outdoor APs required the installation of conduits, and each was around 50ft long with CAT6 cable running through the conduit from the nearest IDF to the desired location of the APs. The fiber run was 350 feet long. This part required the use of all access panels available and had to be worked around the time requested by the restaurant and the clothing store of the resort where the fiber was ran through. The fiber run was completed to connect the necessary IDF to MDF.

  Learn more
•

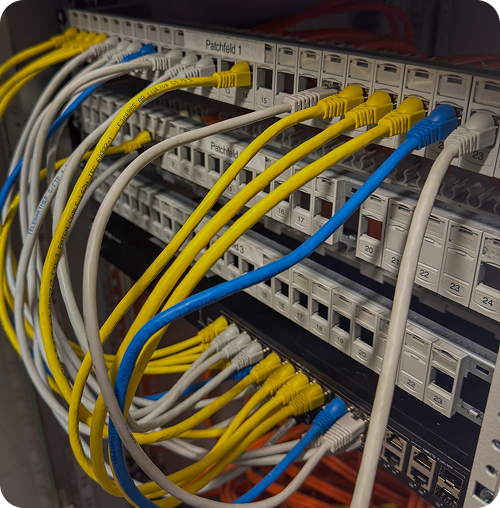

  Gerber Collison & Glass Structured Cabling and Office Set-Up

  For this project we ran 25 new CAT6 Plenum cables and installed a network rack with all IT equipment and workstations. Gerber Collision and Glass is a nationwide body repair shop whose main focus is to repair vehicles. The whole infrastructure runs on the Internet from the Paint computers to the office workstations. To complete this project for Gerber Collision we ran all necessary cables, including the cables in the body shop where we utilized a 19' scissor lift. We also had to extend the COAX broadband cable from MPOE to the MDF location. We installed a backboard and IT rack with all necessary equipment, such as switches, routers, firewall, and LTE failover. We also installed three APs, a Samsung TV with Apple TV, and five workstations: PCs, VOIP phones, and two network printers. Over the years we have full wired and performed all the structure cable for over 6 Gerber Collision and Glass Repair Shops and offices.

  Learn more
•

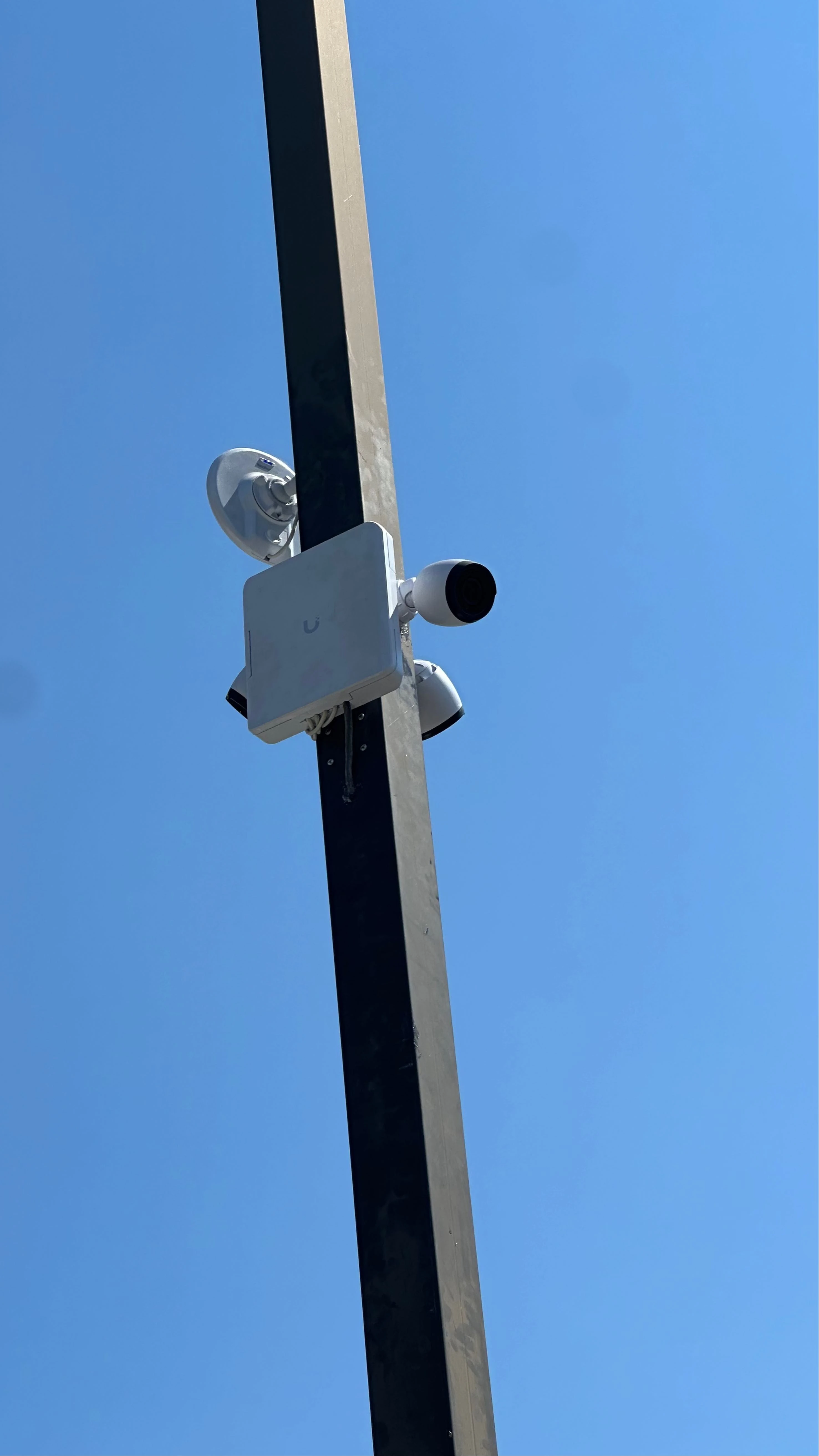

  Business Rental Office Building Security Camera Install

  We installed eleven interior, five outdoor, and three parking lot cameras. This building has a footprint of about 35,000sq-ft. Approximately 2,500ft of CAT6 cable was ran for this project. To complete this project, we had to run 16 CAT6 plenum-rated cables inside the building with five exterior penetrations, which we sealed with silicon after we made the terminations. We Installed 70 feet of conduit outside to mount and secure a Point-to-Point system with an outdoor security camera. The parking lot cameras required the installation of a weather box with a switch and a PoE converter to 24v for the other end of the Point-to-Point system. Cameras for the parking lot were installed on a parking light pole at a height of 16 feet. We ensured with the customer that all crucial areas of this business were covered. This building leases offices to over 130 businesses in the Sacramento Area. It was of utmost importance to keep this building secure with surveillance cameras.

  Learn more
•

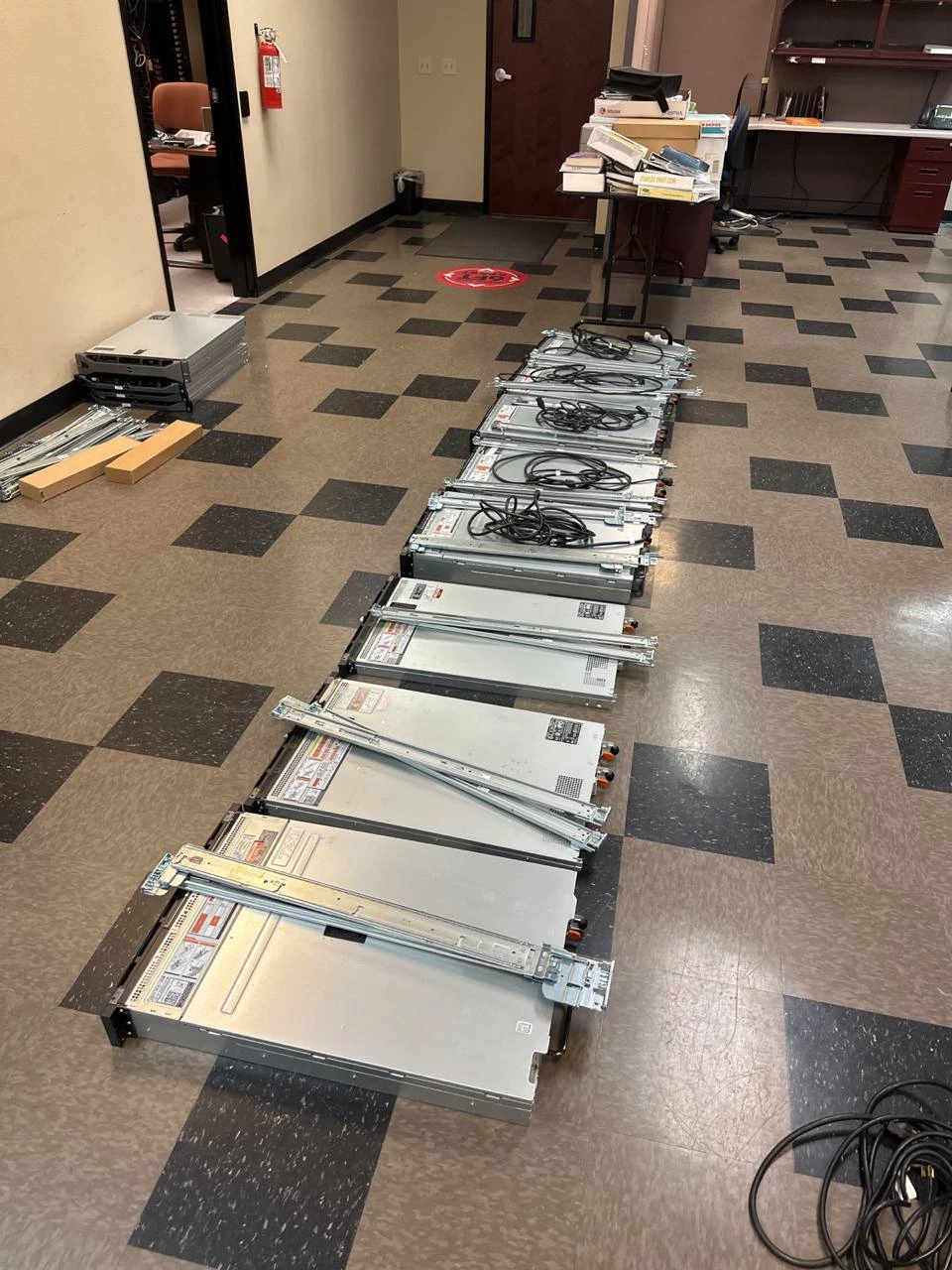

  IT decomission

  Here are the examples from previous projects where we helped clients to decommission their IT equipment. As you can see, we work with more prominent clients to help dismount and ship their servers from data centers and smaller clients who moved out from the facility and needed help moving their IT equipment to a new location.

  Learn more
