Tommy Bahama Miramonte Resort & Spa Structured Cabling and AP Install

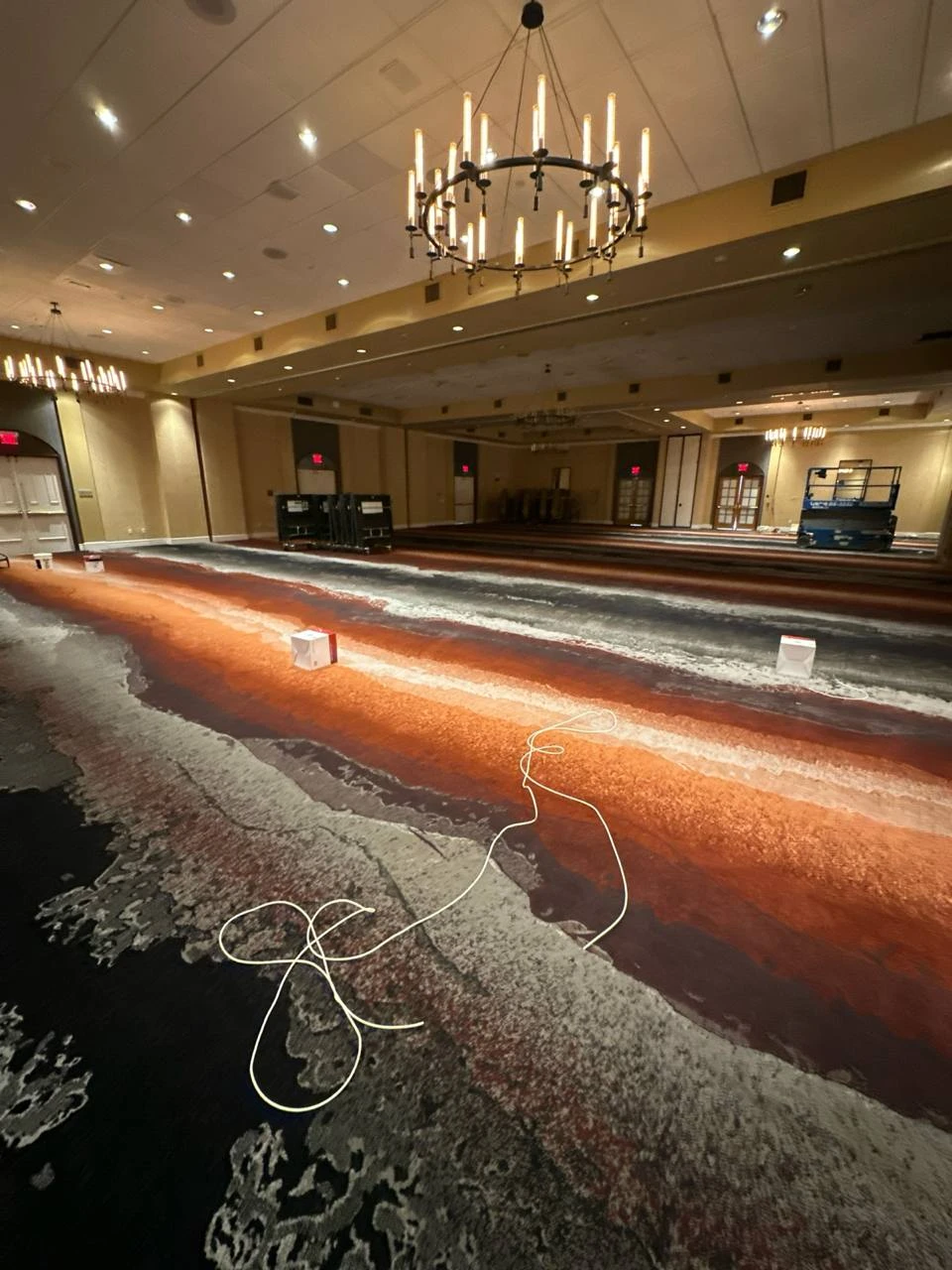

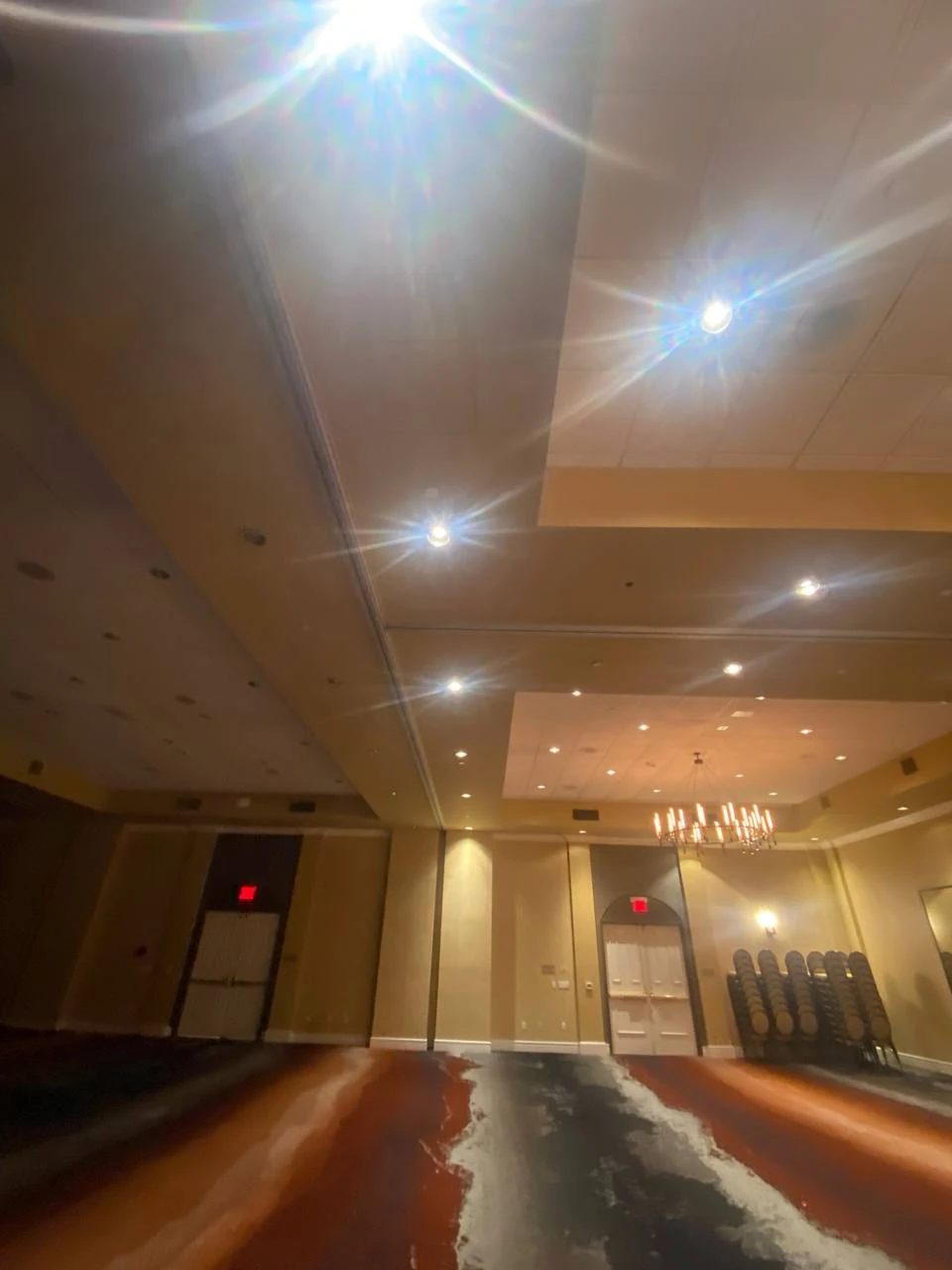

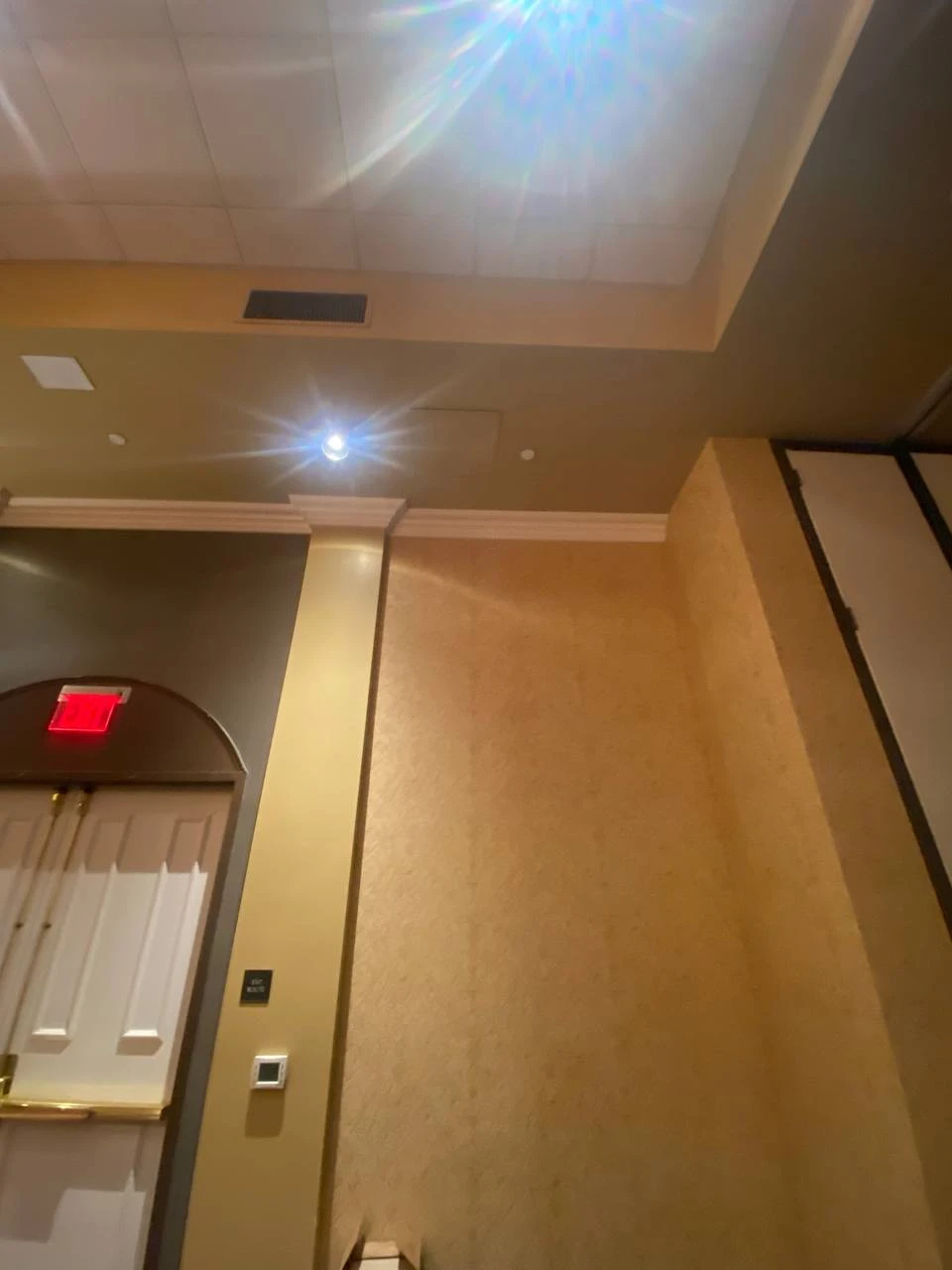

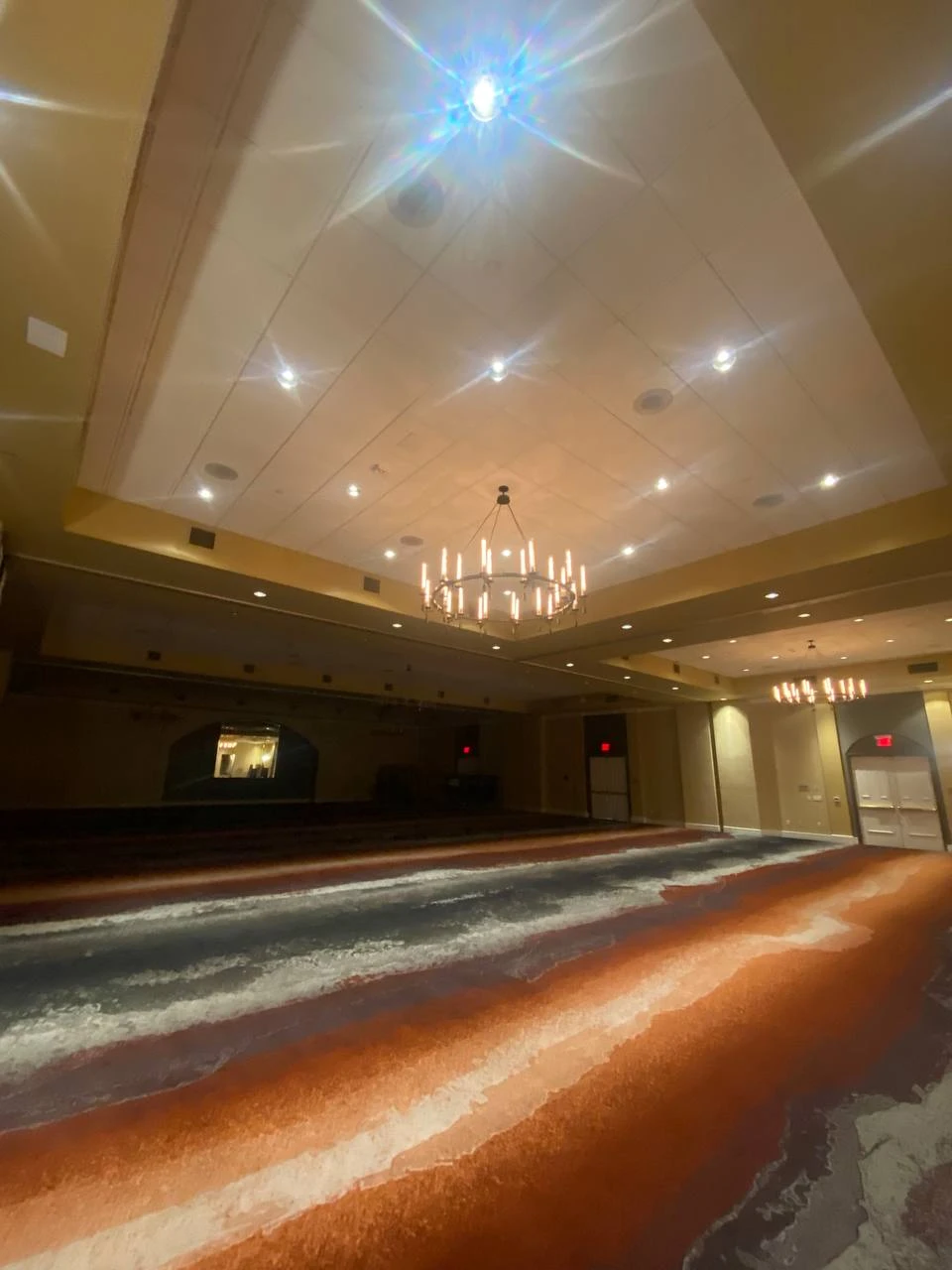

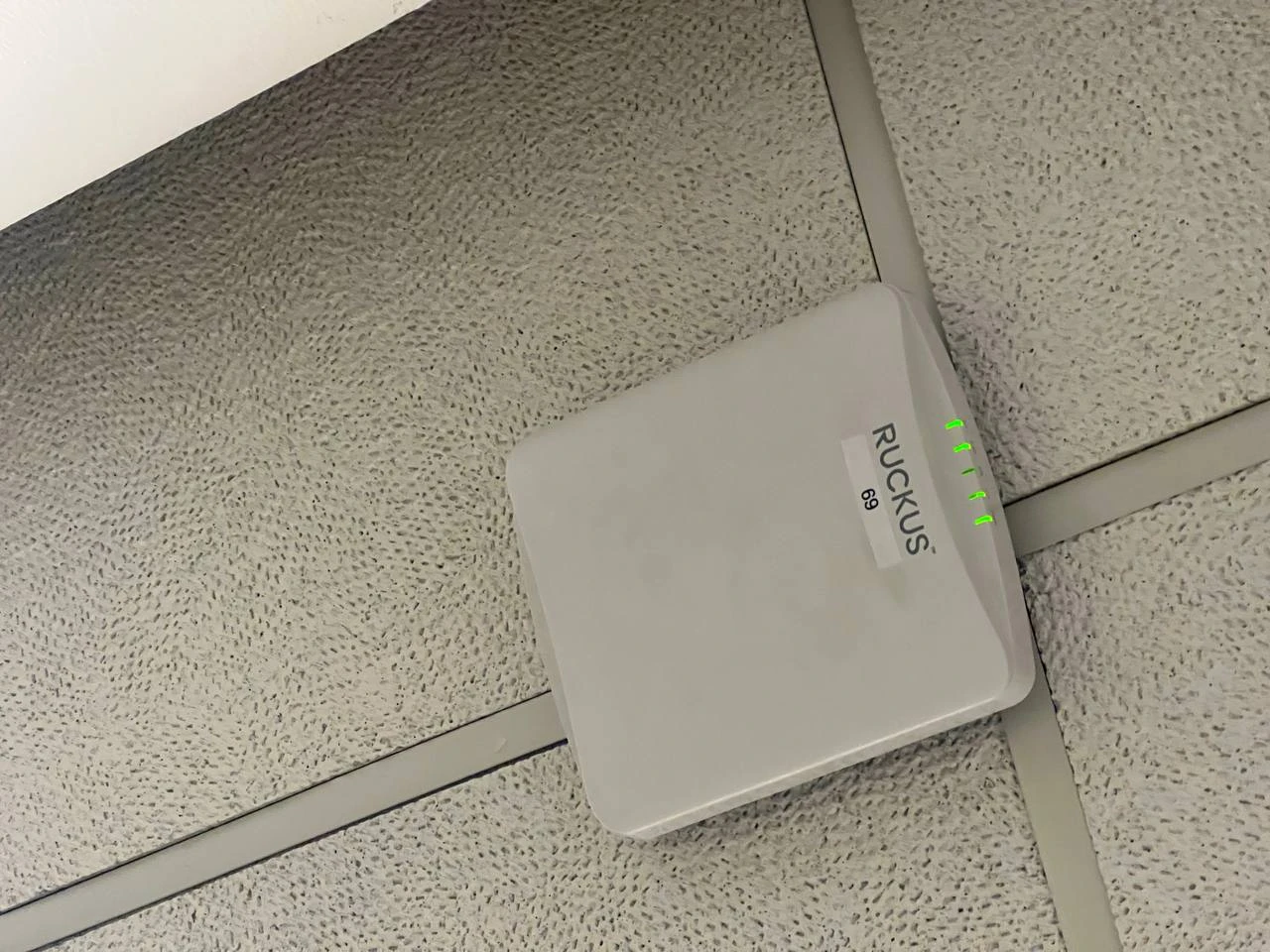

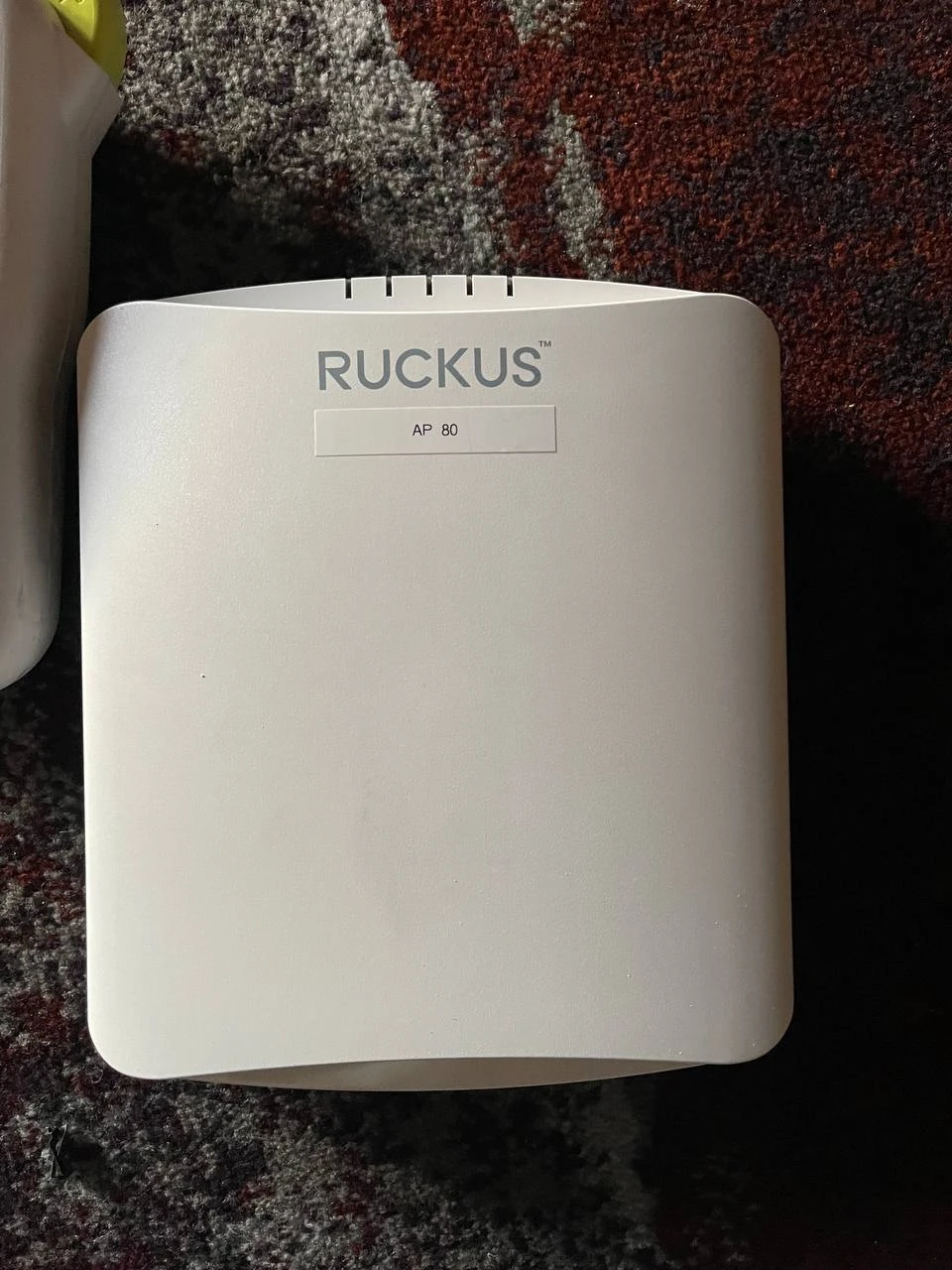

Tommy Bahama Miramonte Resort & Spa is a 5 star resort located in Indian Wells, CA. For this project we installed 27 new Access Points and about 1,500ft of CAT6 Plenum cable for the APs. We also ran 350 feet of OM4 plenum-rated fiber line. To complete this project, we had to run 24 new CAT6 plenum-rated cables inside three buildings and two outdoor buildings. The second floor required the dismounting of light fixtures to run eight cables for the APs since there were no access panels and no crawl space (See Pictures). We utilized a lift for the ballroom since the ceiling was 30 feet high. In the ballroom, we ran nine cables and installed nine access points. Outdoor APs required the installation of conduits, and each was around 50ft long with CAT6 cable running through the conduit from the nearest IDF to the desired location of the APs. The fiber run was 350 feet long. This part required the use of all access panels available and had to be worked around the time requested by the restaurant and the clothing store of the resort where the fiber was ran through. The fiber run was completed to connect the necessary IDF to MDF.
